• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart Warner Corp.; Chicago (IL)

• Year
• 1937 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 61782

• • Brand: Ferrodyne

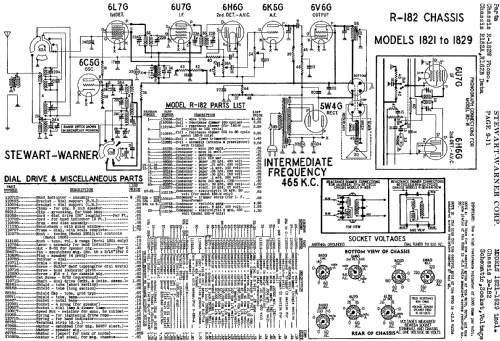

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6L7G 6C5G 6U7G 6H6G 6K5G 6V6G 5W4G

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: R-182 series chassis - Stewart Warner Corp.; Chicago

• Shape
• Chassis only or for «building in»

• Notes
• Chassis R182 is employed in several models;
  R182A = 115 V (60 cycles)
  R182B = 115 V (25 cycles)
  R182W = 100-240 V (50-133 cycles, phono model / export model).

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Other Models

• Here you find 2120 models, 397 with images and 1977 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Stewart Warner Corp.; Chicago (IL)
