- Country
- Canada
- Manufacturer / Brand
- Stewart Warner; Ontario
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 302035

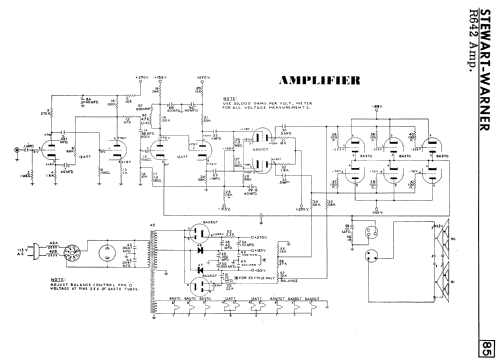

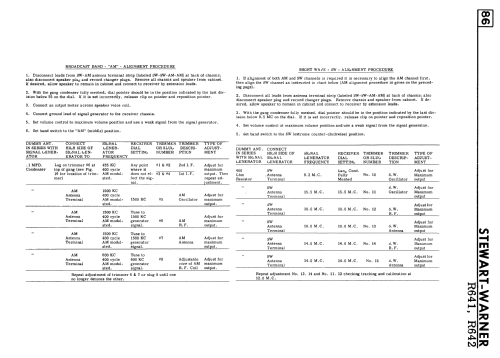

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 5 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: R642 - Stewart Warner; Ontario
- Shape
- Console with any shape - in general
- Notes
-
The Stewart-Warner model R642 is a 14-tube AM/SW console radio with built in phonograph. The tuner and amplifier are on seperate chassis. For 25 or 60 Hz depending on nameplate rating.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1956 supplement 38)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
- Other Models
-
Here you find 325 models, 67 with images and 318 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Stewart Warner; Ontario
