• Country
• Canada

• Manufacturer / Brand
• Stewart Warner; Ontario

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149493

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 51 or 35 24 PZ or 47 80

• Main principle
• TRF without regeneration; Screengrid 1926-1935

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

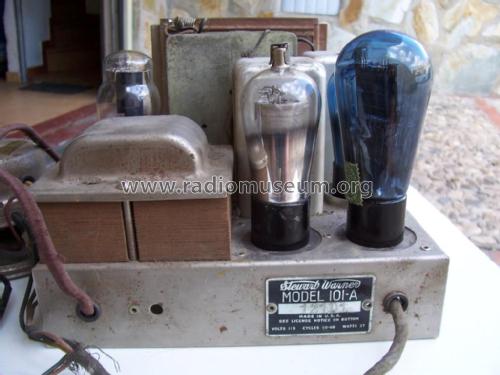

• Model: R-101A - Stewart Warner; Ontario

• Notes
• The same model exists under Stewart Warner Corp.; Chicago.

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Stewart-Warner Sheet 9

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
