• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart Warner Corp.; Chicago (IL)

• Year
• 1933 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 240764

• • Brand: Ferrodyne

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 78 6A7 78 85 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 177.5 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

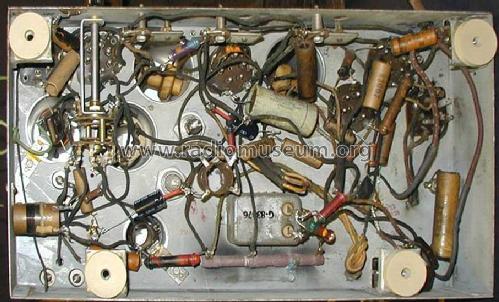

• Model: R-119 Rodney Ch= R-119 - Stewart Warner Corp.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Notes

• See also CH=R119EF (US chassis export with US cabinet) and R-119 Export (US export with possible New Zealand cabinet).

• Literature/Schematics (1)
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Literature/Schematics (2)
• Machine Age to Jet Age II (p. 290)

• Author
• Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
