R-4601 Ch= R-460 5 tube

Stewart Warner; Ontario

Data
Forum
Pictures
Collections

  • Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 147883

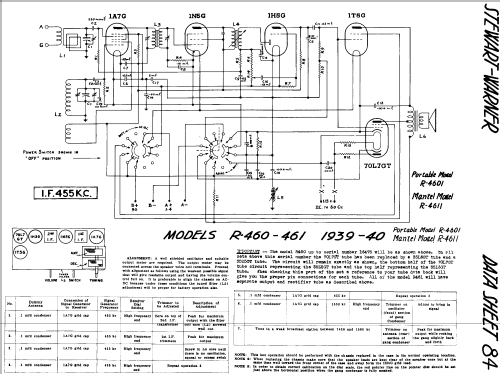

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Line / Batteries (any type) / 1,5 & 90; 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: R-4601 Ch= R-460 [5 tube] - Stewart Warner; Ontario
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 310 x 285 x 150 mm / 12.2 x 11.2 x 5.9 inch
  • Notes

  • Built-in loop antenna; mains supply 115 V AC or DC.

    This is a 5 tube variant of the 6 tube model having the same model number.  Per the Stewart Warner Data Sheet 84, models after serial number 16475 replaced the 70L7GT with a 35L6GT and a 35Z5GT.

  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Stewart-Warner Sheet 84
