• Country
• Canada

• Manufacturer / Brand
• Stewart Warner; Ontario

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 316738

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6K6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

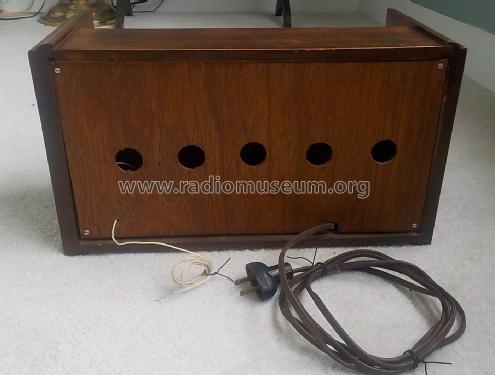

• Material
• Wooden case

• from Radiomuseum.org
• Model: R-559 - Stewart Warner; Ontario

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 375 x 210 x 164 mm / 14.8 x 8.3 x 6.5 inch

• Notes

• Based on the tubes, the schematic may be similar to model R-515.

• Author
• Model page created by David Erali. See "Data change" for further contributors.
