• Country
• United States of America (USA)

• Manufacturer / Brand
• Stewart Warner Corp.; Chicago (IL)

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 61848

• • Brand: Ferrodyne

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

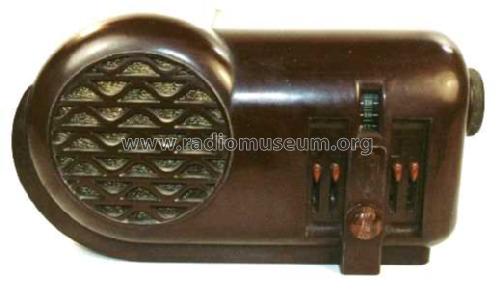

• Model: Senior Varsity Ch= 03-5B - Stewart Warner Corp.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Notes

• Model "Senior Varsity" uses chassis 03-5B or 07-5B. Available in all school colors.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Literature/Schematics (1)
• Radio Retailing (Radio & Television R.) (ad January 1939 page 4)

• Other Models

• Here you find 2122 models, 397 with images and 1979 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Stewart Warner Corp.; Chicago (IL)
