Antennentestgerät 599
Stolle, Karl, Antennenfabrik; Lünen-Horstmar
- Country
- Germany
- Manufacturer / Brand
- Stolle, Karl, Antennenfabrik; Lünen-Horstmar
- Year
- 1970 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 84973
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage and/or dry batteries / 4 × 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: Antennentestgerät 599 - Stolle, Karl, Antennenfabrik;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 230 x 160 x 165 mm / 9.1 x 6.3 x 6.5 inch
- Notes

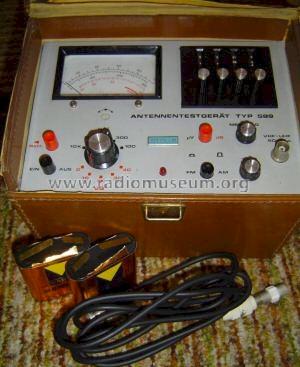

- Stolle Antennentestgerät 599;
Messgerät für Antennensignale. IEC bzw. BNC-Anschlußbuchse. Ablesung in dB/µV. TV-Bänder mit Festsendertasten aufrufbar. Für Band I, II (UKW Radio), III, IV, V. AM/FM Ton umschaltbar.
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by a member from A. See "Data change" for further contributors.
