• Country
• Germany

• Manufacturer / Brand
• Strasser Spulen; Traunstein

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 350553

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH4 ECH4 EBL1 AZ1

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• from Radiomuseum.org

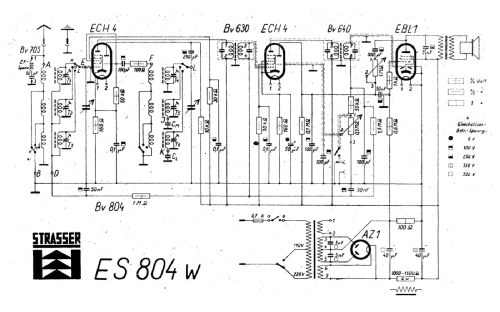

• Model: Superhet ES804W - Strasser Spulen; Traunstein

• Notes

• Das Modell Strasser ES804W verwendet den Standardsuper-Röhrensatz, die Siebung der Anodenspannung erfolgt mit Widerstand oder Drossel bzw. Feldspule eines elektrodynamischen Lautsprechers.
