• Country
• Germany

• Manufacturer / Brand
• Strasser Spulen; Traunstein

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 90642

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH5 UCH5 UBL3 UY3

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

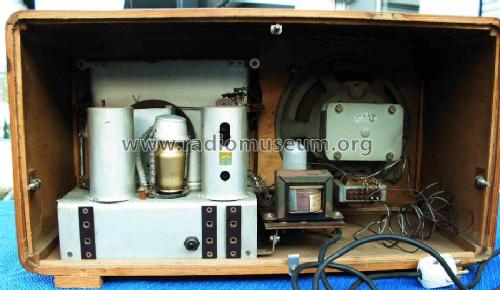

• Model: Atlanta GW Allstrom Sechskreis-Super ES804GW - Strasser Spulen; Traunstein

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 535 x 300 x 250 mm / 21.1 x 11.8 x 9.8 inch

• Notes

• Das Gerät wurde als Bausatz angeboten:

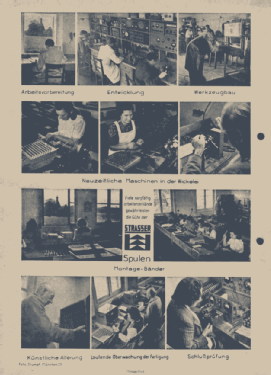

  "Baumappe ES 804 GW  - Atlanta GW"

• Net weight (2.2 lb = 1 kg)
• 9.2 kg / 20 lb 4.2 oz (20.264 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• "Baumappe ES 804 GW - Atlanta GW"

• Author
• Model page created by Herbert Heintges. See "Data change" for further contributors.
