P70
Strato, Hamburg
- Country
- Germany
- Manufacturer / Brand
- Strato, Hamburg
- Year
- 1978
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 164221
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 230 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

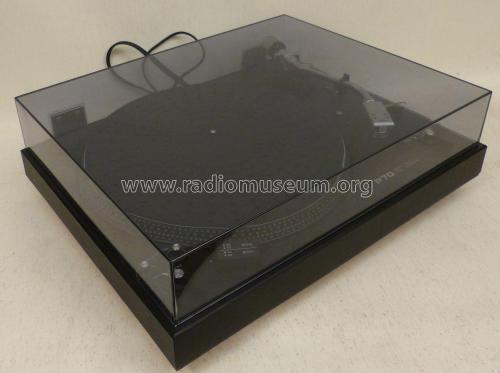

- Model: P70 - Strato, Hamburg
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 45 x 35 x 12 mm / 1.8 x 1.4 x 0.5 inch
- Notes
- Vollautomatischer Direct Drive Plattenspieler P70 für 33 und 45 rpm.
S-förmiger Tonarm mit kugelgelagertem Drehpunkt und Antiskatingvorrichtung; Tonarmsteuerung über Servomotor; optoelektronische Endabschaltung; Geschwindigkeitskontrolle per Stroboskopanzeige Anschlußkabel mit 5-pol DIN-Stecker Motor: Direktantrieb über elektronisch gesteuertem Servo-Motor Drehzahl: Feinregulierung ± 5% Gleichlaufschwankungen: 0,04% Tonarm: Rohrarm S-Form mit Antiskating Vorrichtung Einstellung der Nadelauflage: 0,5-4 p.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 2,000.00 DM
- Author
- Model page created by Martin Brand. See "Data change" for further contributors.
