1101 HI Series 13E 112001
Stromberg-Carlson Co. ; Rochester (NY)
- País
- Estados Unidos
- Fabricante / Marca
- Stromberg-Carlson Co. ; Rochester (NY)
- Año
- 1947 ?
- Categoría
- Radio - o Sintonizador pasado WW2
- Radiomuseum.org ID
- 286429
-
- Brand: Te-Lek-Tor-Et
- Numero de valvulas
- 6
- Principio principal
- Superheterodino con paso previo de RF; ZF/IF 455 kHz; 2 Etapas de AF
- Número de circuitos sintonía
- 7 Circuíto(s) AM
- Gama de ondas
- OM (onda media) solamente
- Tensión de funcionamiento
- Red: Aparato AC/DC. / 105 - 125 Volt
- Altavoz
- Altavoz dinámico (de imán permanente) / Ø 5 inch = 12.7 cm
- Potencia de salida
- 0.65 W (unknown quality)
- Material
- Inyectado (se desconoce si bakelita o plástico).
- de Radiomuseum.org
- Modelo: 1101 HI Series 13E 112001 - Stromberg-Carlson Co. ;
- Forma
- Sobremesa de tamaño mediano sin botonera <= 35 cm. (Incluso portables pero sólo con alimantación por red).
- Ancho, altura, profundidad
- 12.5 x 7.625 x 7 inch / 318 x 194 x 178 mm
- Anotaciones
-
The Stromberg-Carlson 1101HI Series 13E is an AC/DC operated 6 tube BC band receiver. The BC band frequency tuning range is 540-1600kHz. Has built-in loop antenna. Uses type 47 dial lamp.
Compare e.g. with other Stromberg-Carlson 1101xx Receivers like 1101HI Series 10,
1101HI Series 11 and 1101HI Series 12E.Color: Ivory.

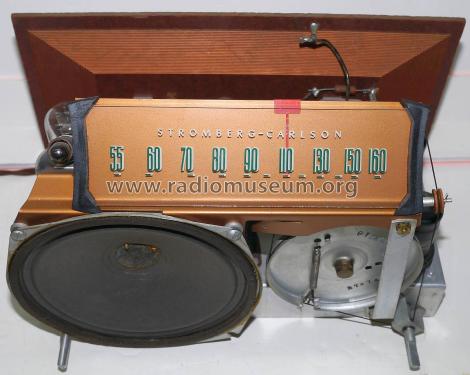

The Stromberg-Carlson model 1101 was made at least in 6 different cabinet versions: HB: Brown bakelite, chassis 112002, cabinet 108031; HI: Ivory bakelite, chassis 112002, cabinet 108032; HM: Mahagony, chassis 112003, cabinet 108011 ; HW: Walnut, chassis 112001, cabinet 108001; HY: Bleached, chassis 112001, cabinet 108002 and as a radiogram 1101HPW with Walnut cabinet. Except of the radiogram, they were produced as series 10 with a Electro Magnetic Dynamic loudspeaker, followed by series 11 with a Permanent Magnet Dynamic loudspeaker as main difference. Later series are similar as series 11 and we can put pictures up to series 11. The radiogram was most probably only made in the later series. It is possible that Canadian made models exist and that they use other series. Please be careful where to load up your pictures and if possible load up also one of the chassis.
For details, please read this forum text about this model line.
- Peso neto
- 8 lb 0 oz (8 lb) / 3.632 kg
- Documentación / Esquemas (1)
- Beitman Radio Diagrams, Vol. 07, 1947
- Documentación / Esquemas (2)
- Rider's Perpetual, Volume 15 = 1947 and before
- Autor
- Modelo creado por David Erali. Ver en "Modificar Ficha" los participantes posteriores.
