• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 61891

• • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6 35Z5

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.125 inch = 13 cm

• Power out
• 0.65 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 1101HM Series 11 - Stromberg-Carlson Co. ;

• Shape
• Tablemodel, with any shape - general.

• Notes

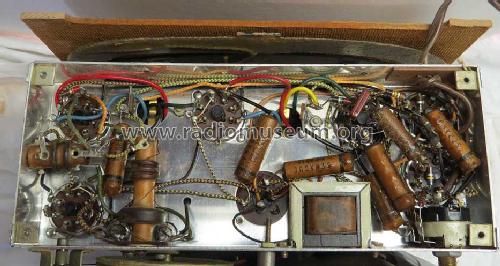

• The Stromberg-Carlson model 1101 was made at least in 6 different cabinet versions: HB: Brown bakelite, chassis 112002, cabinet 108031; HI: Ivory bakelite, chassis 112002, cabinet 108032; HM: Mahagony, chassis 112003, cabinet 108011 ; HW: Walnut, chassis 112001, cabinet 108001; HY: Bleached, chassis 112001, cabinet 108002 and as a radiogram 1101HPW with Walnut cabinet. Except of the radiogram, they were produced as series 10 with a Electro Magnetic Dynamic loudspeaker, followed by series 11 with a Permanent Magnet Dynamic loudspeaker as main difference. Later series are similar as series 11 and we can put pictures up to series 11. The radiogram was most probably only made in the later series. It is possible that Canadian made models exist and that they use other series. Please be careful where to load up your pictures and if possible load up also one of the chassis.

  For details, please read this forum text about this model line.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Beitman Radio Diagrams, Vol. 07, 1947

• Literature/Schematics (1)

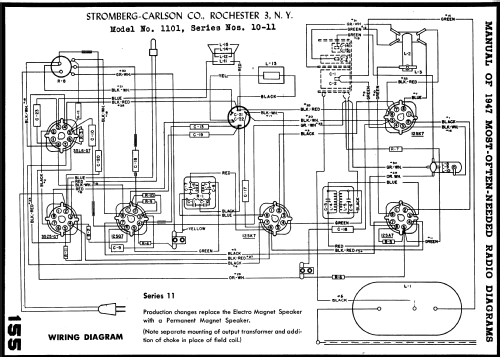

• Photofact Folder, Howard W. SAMS (Dat 7-46, set 2, folder 462-9)

• Other Models

• Here you find 880 models, 494 with images and 754 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Stromberg-Carlson Co. ; Rochester (NY)
