• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 61896

• • Brand: Te-Lek-Tor-Et

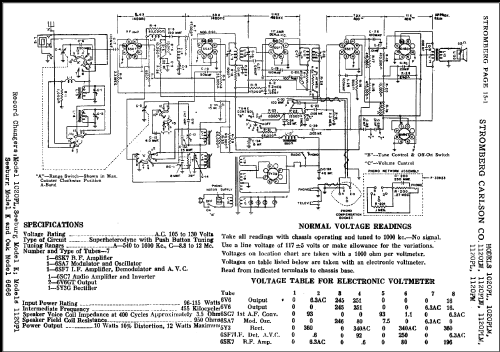

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SK7 6SA7 6SF7 6SC7 6V6GT 6V6GT 5Y3

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 105 - 130 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 12 W (max.)

• Material
• Wooden case

• from Radiomuseum.org

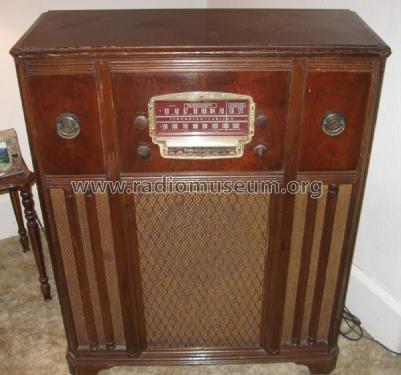

• Model: The Cavalier 1120-LW - Stromberg-Carlson Co. ;

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 31.25 x 39 x 13 inch / 794 x 991 x 330 mm

• Notes

• The Cavalier 1120-LW.

  Has the following features:

  1. Receives on standard broadcast (540 to 1600 kHz) and short wave bands (8.8 to 12 Mhz).
  2. Push-button tuning for six stations.
  3. Automatic volume control.
  4. Built-in loop antenna.
  5. Comes in walnut cabinet of contemporary design (designated by the "W" in the model type).
  6. English antique-finished hardware.
  7. Output power is 10 W (10% distortion) and 12 W max.


• Price in first year of sale
• 99.95 USD

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Literature/Schematics (1)
• Radio Retailing (Radio & Television R.) (Feb 1946, pg 28; Apr 1946, pg 91)
