1121-PLM Series 10-11-12
Stromberg-Carlson Co. ; Rochester (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 61911
-
- Brand: Te-Lek-Tor-Et
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1121-PLM Series 10-11-12 - Stromberg-Carlson Co. ;

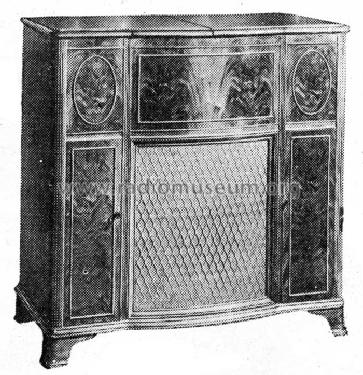

- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 36 x 36.5 x 18 inch / 914 x 927 x 457 mm
- Notes
- Frequency Ranges:
BC band - 540 to 1700 kc
SW band - 8,8 to 10,2 kc
FM1 band - 88 to 108 mc
FM2 band - 42 to 50 mc
Cabinet #108014
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in

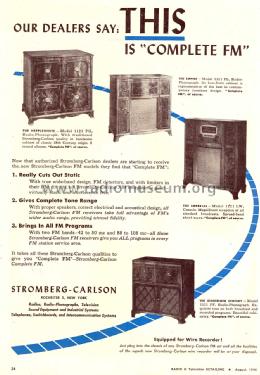

- Radio Retailing (Radio & Television R.) (August 1946 page 24. January 1947 page 53.)
- Literature/Schematics (1)

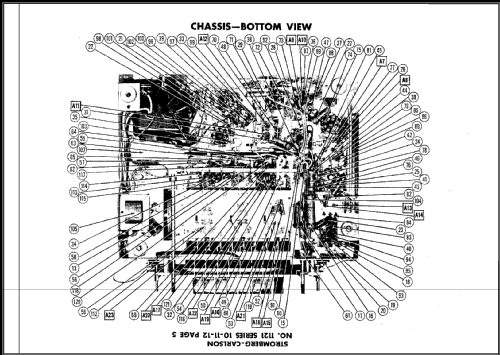

- Photofact Folder, Howard W. SAMS (Dat 12-46, set 10, folder 4610-31)
