• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 61980

• • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6K7 6A8 6J7 6K7 6E5 6K7 6Q7 6L6 6L6 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 @ 50/60 Hz Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

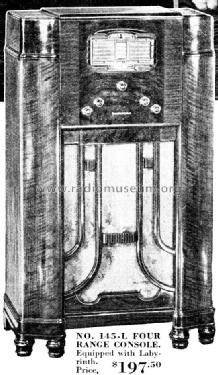

• Model: 145-L Ch= P-26288 - Stromberg-Carlson Co. ;

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• The Stromberg-Carlson model 145-L is a 10 tube, AC operated LW/BC/Police/SW band receiver.

  Band Frequencies:
  Longwave Band ("Band X"): 145-370kHz
  Broadcast Band ("Band A"): 530-1700kHz
  Police Band ("Band B"): 1700-5600MHz
  SW Band ("Band C"): 5.6-18.0MHz

  Uses 50-60Hz AC power source. Uses all metal tubes. Bi-resonator input circuit for BC band. Has Eye Tube. Also has push-pull output stage and 2 IF gain stages.

• Price in first year of sale
• 197.50 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition (Rider's 7-23 to 7-26)

• Literature/Schematics (1)
• Pre-War Consoles

• Literature/Schematics (2)
• Radio Retailing (Radio & Television R.) (April 1937.)

• Literature/Schematics (3)
• - - Manufacturers Literature (Stromberg-Carlson Datasheet P-26992 Form 2124 Issue 1)
