The Dynatomic 1500-H

• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 167409

• • Brand: Te-Lek-Tor-Et

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AV6 50L6GT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: The Dynatomic 1500-H - Stromberg-Carlson Co. ;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 300 x 200 x 180 mm / 11.8 x 7.9 x 7.1 inch

• Notes

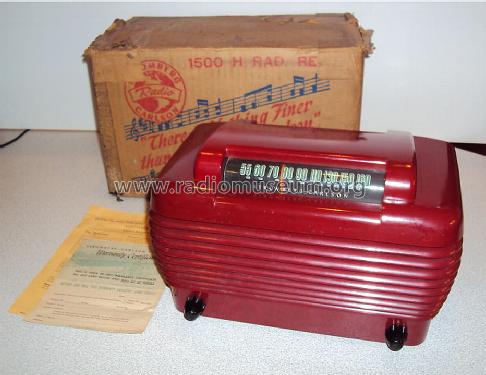

• Available in brown or ivory finish.

  Also in maroon bakelite.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition) (page 272)

• Literature/Schematics (1)
• Machine Age to Jet Age II

• Literature/Schematics (2)

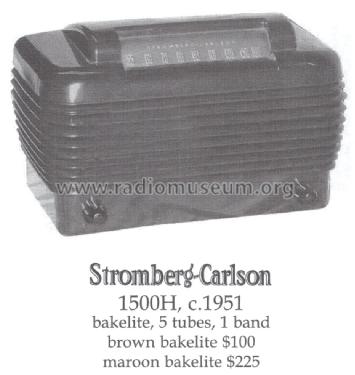

• Table Top Radios Vol. 1 Stein 98 (page 158.)

• Author
• Model page created by Aglef Tröger. See "Data change" for further contributors.
