• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62032

• • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6A8 6J5 6K7 6H6 6U5 6B8 6F6 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

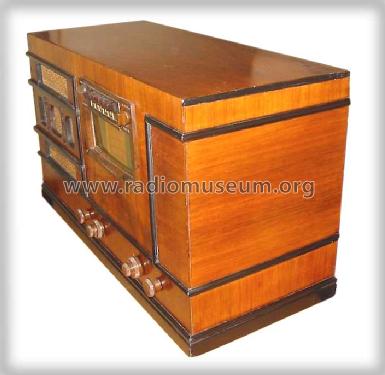

• Model: 235-H - Stromberg-Carlson Co. ;

• Shape
• Tablemodel with Push Buttons.

• Notes
• BC (530-1700 kHz) with 6 station buttons, TROP (1700-5600 kHz) and SW (5.6-18.0 MHz) bands. AFC circuit, tuning eye. For 50 to 60 Hz AC.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before
