• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62063

• • Brand: Te-Lek-Tor-Et

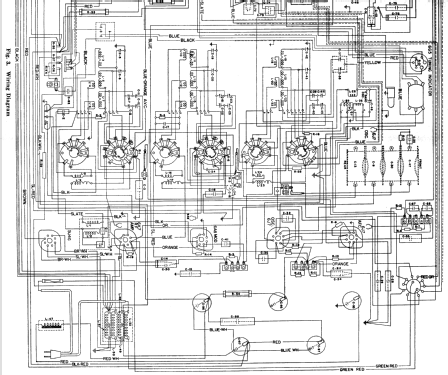

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6K7 6A8 6J7 6J7 6G5 6K7 6B8 6H6 6F5 6C5 6L6 6L6 5U4G

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 255-L - Stromberg-Carlson Co. ;

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• BC (530-1600 kHz), TROP (1600-4800 kHz), SW1 (4.8-11.0 MHz), SW2 (11.0-22.0 MHz) and SW3 (22.0-60.0 MHz) bands. Tuning eye, AFC circuit with "Flash Tuner", push-pull audio amplifier. For 50 to 60 Hz AC.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition (Rider's 10-1 to 10-8)

• Literature/Schematics (1)
• Pre-War Consoles
