- Country
- Canada
- Manufacturer / Brand
- Stromberg Carlson Telephone Mfg. CO. of Canada Ltd; Toronto
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 223011

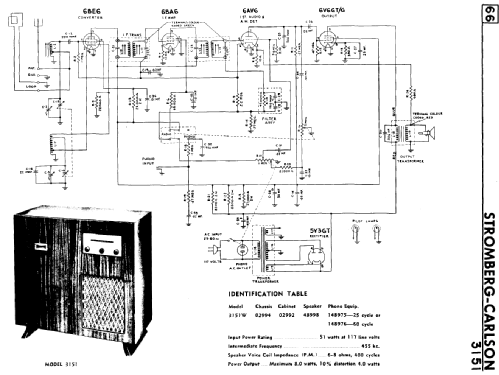

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 4 W (8 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 3151 - Stromberg Carlson Telephone
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 31 x 30.25 x 16 inch / 787 x 768 x 406 mm
- Notes
-
The Stromberg-Carlson model 3151 console has a concealed phono drawer with 3 speed record changer. Cabinet available in Walnut finish. 12" PM "Isotone" speaker. Full vision slide-rule type dial. Built in antenna. Beampower output.
- External source of data
- Folder 1948 with 12 models.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 26 pages 66 to 68)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
