340-W Ch= 340
Stromberg-Carlson Co. ; Rochester (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1938–1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 223051
-
- Brand: Te-Lek-Tor-Et
- Number of Tubes
- 9
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet.
- Material
- Wooden case
- from Radiomuseum.org
- Model: 340-W Ch= 340 - Stromberg-Carlson Co. ;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 25.875 x 41.375 x 13.5 inch / 657 x 1051 x 343 mm
- Notes
-

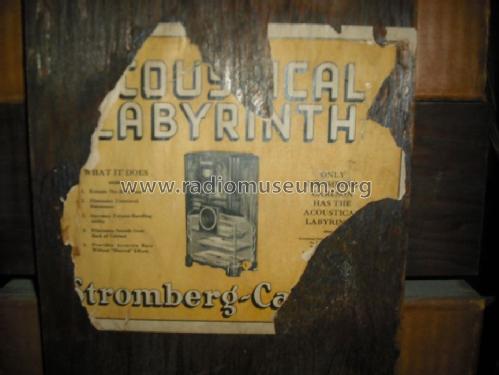

The Stromberg-Carlson model 340-W with chassis no. 340 is called "Labyrinth Radio" with "authentic Tudor Design". This model is a so called "Corner Cabinet". In the same folder for 1939/40 saison this older model is featured with 340-Y and 350-V, all are corner cabinets. Mahogany cabinet but also available in Walnut.
- Literature/Schematics (1)
- Radio Retailing (Radio & Television R.) (ad January 1939 page 2)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
