340-F Ch= 340
Stromberg-Carlson Co. ; Rochester (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62099
-
- Brand: Te-Lek-Tor-Et

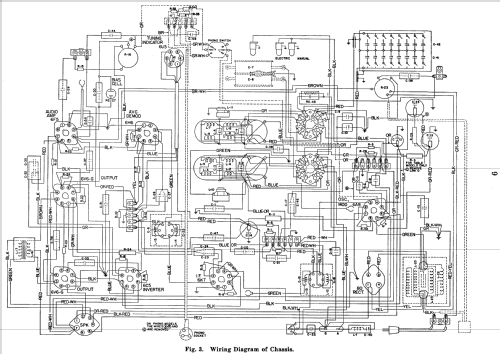

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10.25 inch = 26 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 340-F Ch= 340 - Stromberg-Carlson Co. ;
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 25.5 x 41.75 x 13.375 inch / 648 x 1060 x 340 mm
- Notes
-
BC (530-1700 kHz) band with eight station buttons and SW (5.9-18.0 MHz) band. Tuning eye, push-pull audio amplifier. For 50 to 60 Hz AC.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
- Mentioned in
- Collector's Guide to Antique Radios 4. Edition (Rider's 10-16, 10-23 to 10-26)
