• Country
• Australia

• Manufacturer / Brand
• Stromberg-Carlson (Australasia) Pty. Ltd. Sydney

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 169480

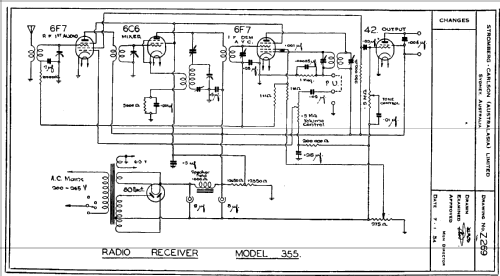

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6F7 6C6 6F7 42 80

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200-265 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 355 - Stromberg-Carlson Australasia

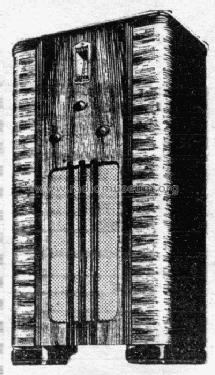

• Shape
• Console, Lowboy (legs < 50 %).

• Price in first year of sale
• 29.98 Aus£

• Mentioned in
• The Listener In, 23-2-35, P3.

• Literature/Schematics (1)
• Radio Trade Annual 1938 P332.

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
