- Country
- Canada
- Manufacturer / Brand
- Stromberg Carlson Telephone Mfg. CO. of Canada Ltd; Toronto
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 223006

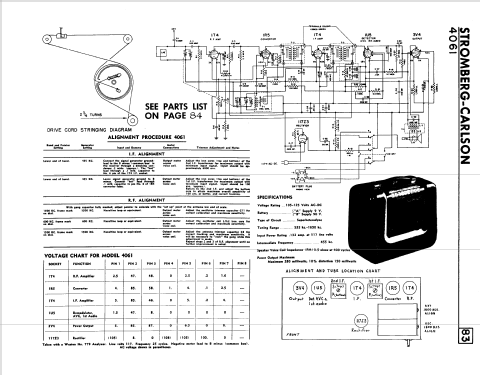

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC: 105-125 / BATT: 9 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 4061 - Stromberg Carlson Telephone
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 11 x 9 x 6.25 inch / 279 x 229 x 159 mm
- Notes
-

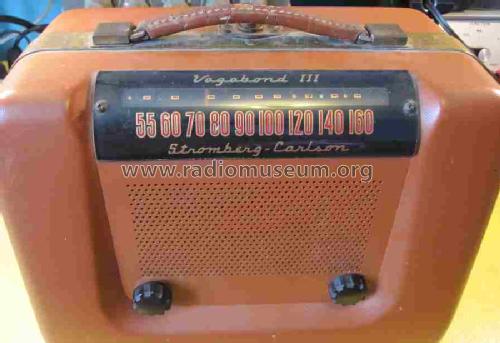

The Stromberg-Carlson model 4061 is a Three way portable radio receiver with self-contained battery pack. Rugged versalite cabinet with slide-rule dial. Built in antenna.
- Net weight (2.2 lb = 1 kg)
- 15 lb (15 lb 0 oz) / 6.810 kg
- External source of data
- Folder 1948 with 12 models.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
