- Country
- Australia
- Manufacturer / Brand
- Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 169906
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s); Anode bend detection
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 135 & 45 & 2 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 406 - Stromberg-Carlson Australasia
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
The type 32 is connected in a "filadyne" convertor circuit.

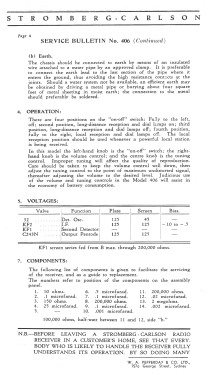

Information in The Mingays IF Index, 1933-39, page 75, references model 46 and the model 406 to the Radio Trade Annual 1938, page 334. The Model 406 is covered with a schematic and notes; however there is no reference to the Model 46 having the same chassis as the 406.
- Literature/Schematics (1)
- Radio Trade Annual 1938 P334.
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
