• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1952 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 357716

• • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• 6BQ7 or 6BK7 6J6 6BA6 6BA6 6CB6 6CB6 6U8 6AG7 6AU6 6AU6 6T8 6V6GT 12AU7 6SN7GT 6BL7GT 6AL5 6SN7GT 6AU5GT 6W4GT or 6AX4 1B3GT 5U4G 5U4G 17HP4

• Conflicting model year with tube data.
• The model date contradicts tube dates. [ 6U8 (1953)]

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60Hz, 117V=110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 inch = 14 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 417TX - Stromberg-Carlson Co. ;

• Shape
• Tablemodel, with any shape - general.

• Notes

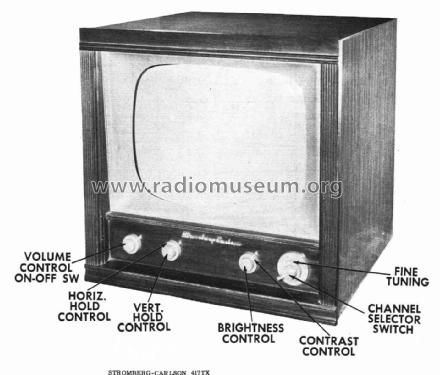

• Stromberg-Carlson model 417TX is a 17” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 164019 and picture tube 17HP4.



• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 178, folder 15, dated 9-52)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
