440-M Ch= 440
Stromberg-Carlson Co. ; Rochester (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1939–1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62188
-
- Brand: Te-Lek-Tor-Et
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10.25 inch = 26 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 440-M Ch= 440 - Stromberg-Carlson Co. ;
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 27.25 x 42.25 x 14 inch / 692 x 1073 x 356 mm
- Notes
-
Eight station buttons for BC band. Tuning eye, push-pull audio amplifier. For 50 to 60 Hz AC.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Mentioned in
- Pre-War Consoles (Rider's 11-33 to 11-36)
- Literature/Schematics (1)

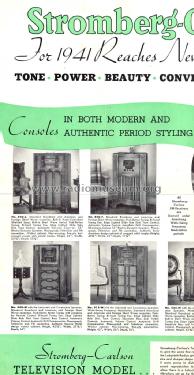

- Radio Retailing (Radio & Television R.) (ad June 1939 page 3)
