• Country
• Australia

• Manufacturer / Brand
• Stromberg-Carlson (Australasia) Pty. Ltd. Sydney

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166806

• Number of Tubes
• 4

• Valves / Tubes
• 6A8G 6G8G 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch

• Power out
• 4.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

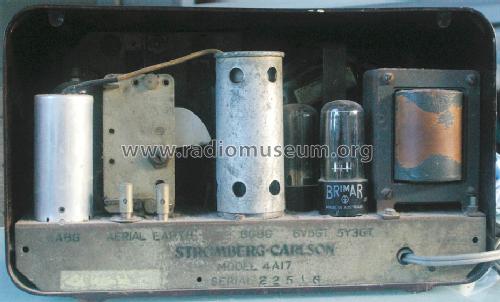

• Model: 4A17 [with 6G8G valve.] - Stromberg-Carlson Australasia

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 300 x 180 x 150 mm / 11.8 x 7.1 x 5.9 inch

• Price in first year of sale
• 17.00 Aus £

• Author
• Model page created by Roger Brinkman. See "Data change" for further contributors.
