• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62203

• • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

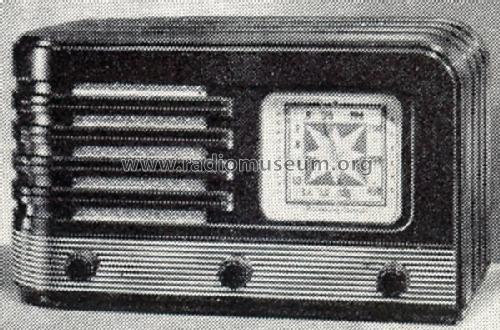

• Model: 500-H - Stromberg-Carlson Co. ;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 13.625 x 8.125 x 8.25 inch / 346 x 206 x 210 mm

• Notes

• BC (540-1650 kHz) band. May be used with 25 to 60 Hz AC. Modern plastic cabinet in choice of blue, brown, silver or ivory, with contrasting stripes.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in
• Rider's 13-1, 13-2

• Literature/Schematics (1)
• Machine Age to Jet Age II (page 295.)
