Upright Console 507
Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
- Country
- Australia
- Manufacturer / Brand
- Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 165293
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 135 & 2 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

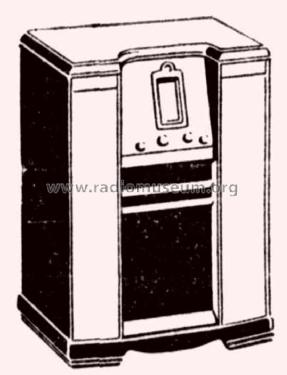

- Model: Upright Console 507 - Stromberg-Carlson Australasia
- Shape
- Console, Lowboy (legs < 50 %).
- Price in first year of sale
- 30.45 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. I
- Literature/Schematics (1)
- - - Manufacturers Literature (Stromberg Carlson Service Bulletin, No. 507.)
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 1, 1938, Page 237.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
