• Year
  • 1940/1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 62213
    • Brand: Te-Lek-Tor-Et

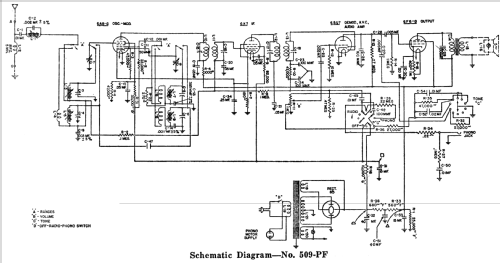

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 509-PF - Stromberg-Carlson Co. ;
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 20.625 x 37.75 x 16.5 inch / 524 x 959 x 419 mm
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
  • Literature/Schematics (1)
  • Rider's 12-9, 11-7
