- Country
- Australia
- Manufacturer / Brand
- Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 169937

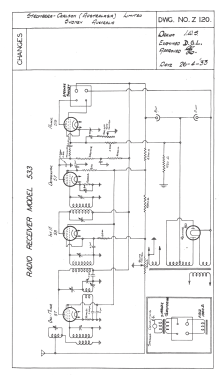

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 1 AF stage(s); Anode bend detection
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 200, 220, 240, 260 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 533 - Stromberg-Carlson Australasia
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
This moderately priced 5-valve Superheterodyne is the latest addition to the superb Stromberg-Carlson range of receivers.
Five of the newest types of valves are embodied in its circuit. An ingenious feature permits the control of higher and lower registers at will with amazing realism. Long range without interference from unwanted stations, tonal purity, and pleasing volume is guaranteed.
You have but to listen in to the Stromberg-Carlson No. 533 and to view its handsome, well-built cabinet, to realise that radio perfection is offered at a price well within reach of everyone.
Price, fully equipped, £29/10/-.
Wireless Weekly Jun 23, 1933 Page 33.
- Price in first year of sale
- 29.50 Aus£
- Mentioned in
- Wireless Weekly (Australia) (2-6-1933 page 37.)
- Literature/Schematics (1)
- Radio Trade Annual 1938 P331.
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
