- Country
- Australia
- Manufacturer / Brand
- Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
- Year
- 1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 205955
Gumtree AU Ad ID 1325165486
Gumtree AU Ad ID 1325165486
Gumtree AU Ad ID 1325165486

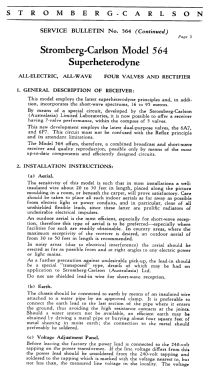

Click on the schematic thumbnail to request the schematic as a free document.

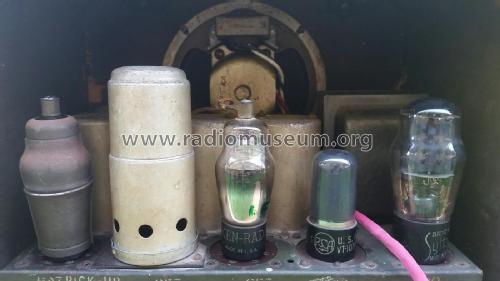

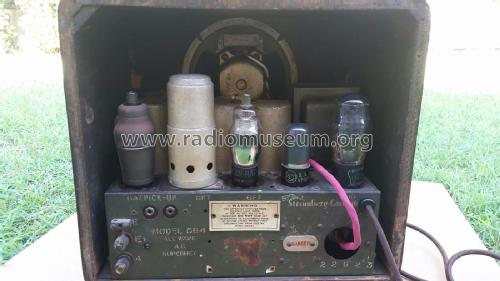

- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 200; 220; 240; 265 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material

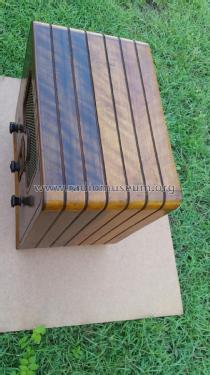

- Wooden case
- from Radiomuseum.org

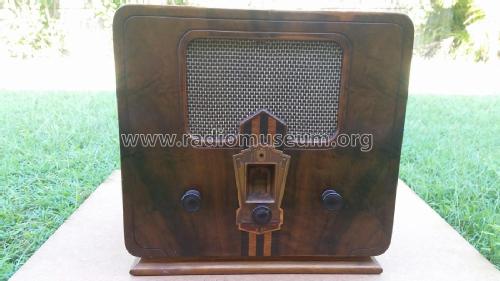

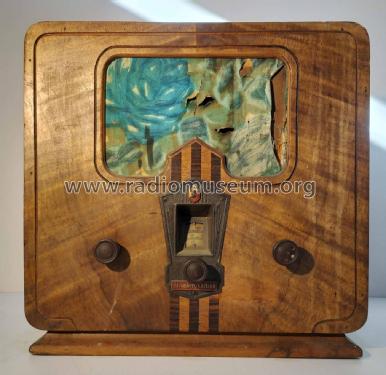

- Model: 564 [Mantel] - Stromberg-Carlson Australasia
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 13.5 x 13 x 9 inch / 343 x 330 x 229 mm
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
