• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62241

• • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 25-60 Hz, 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 inch = 14 cm

• Material
• Bakelite case

• from Radiomuseum.org

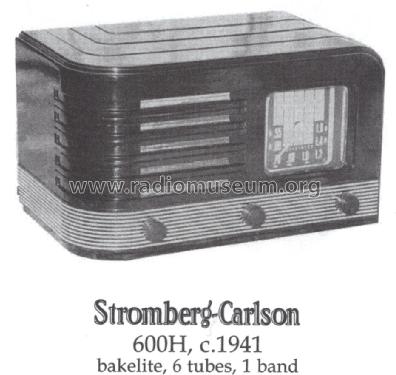

• Model: 600-H Ch= 33196 - Stromberg-Carlson Co. ;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 13.625 x 8.125 x 8.25 inch / 346 x 206 x 210 mm

• Notes

• The Stromberg-Carlson model 600-H is a DC or 25-60Hz AC operated 6 tube BC band receiver. The BC Band frequency range is 540-1650kHz. Cabinet colors available in Ivory or Brown. Has built in loop antenna with provisions for external antenna. Also has AGC circuit and 2 step tone control.

• Price in first year of sale
• 24.95 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition (Rider's 13-4, 13-5)

• Literature/Schematics (1)
• Radio Retailing (Radio & Television R.) (February 1941.)

• Literature/Schematics (2)
• - - Manufacturers Literature (Stromberg Carlson Datasheet P-33987 Issue 1)

• Literature/Schematics (3)
• Stromberg-Carlson Cir. #1043, Season 1941

• Literature/Schematics (4)
• Table Top Radios Vol. 1 Stein 98 (page 157.)
