601-A slant panel
Stromberg-Carlson Co. ; Rochester (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1925/1926

- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62243
-
- Brand: Te-Lek-Tor-Et

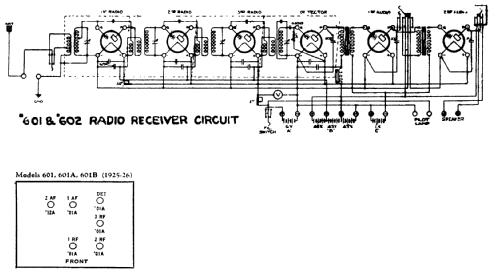

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- TRF without regeneration; 2 AF stage(s); Neutrodyne
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 6 & 45 & 90 & 135 & -? Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case
- from Radiomuseum.org
- Model: 601-A [slant panel] - Stromberg-Carlson Co. ;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Two dials (primary tuning control knobs) There is also a treasure chest type 601B (vertical panel).
By 1927 it could have a UX112A with half of the cathode current than the UX112, but not before.
- Price in first year of sale
- 225.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Mentioned in
- Radio Manufacturers of the 1920's, Vol. 3 (Rider's 1-4)
- Other Models
-
Here you find 884 models, 495 with images and 759 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Stromberg-Carlson Co. ; Rochester (NY)
Forum contributions about this model: Stromberg-Carlson Co: 601-A
Threads: 1 | Posts: 5
On this radio, there is a audio transformer used as a choke (I'm guessing). The 45v+ was attached to one of the leads of the primary and the other went to the first audio transformer and to the plate on the detector tube.
I was normal to have an audio transformer there? I have seen that transformer used in older models of Stromberg. Did they use left overs to build this model?
Would this be a 1:3 or 1:4 transformer?
Was this a replacement of later days?
Thanks for your help
