• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 86060

• • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6K7 6A7 6K7 6H6 6F5 6F6 80

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 61-H - Stromberg-Carlson Co. ;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 0 x 11 x 0 inch / 0 x 279 x 0 mm

• Notes

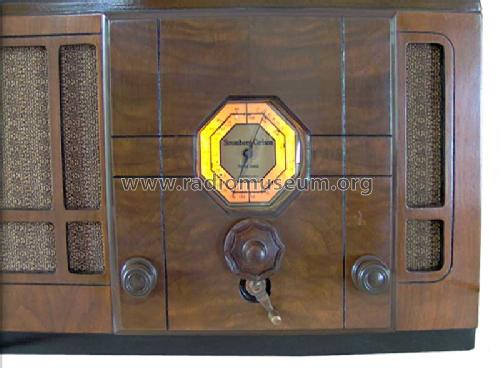

• The Stromberg-Carlson model 61-H has BC (540-1500 kHz), TROP (1450-3500 kHz) and SW (5.6-18.0 MHz) bands. For 50 to 60 Hz AC. The crank below the tuning knob (note the "spinner" extending from the center) operates the band switch. Stromberg-Carlson advertised the model 61-H in the "Time Magazine", November 25, 1935.

• Price in first year of sale
• 68.00 $

• Source of data
• Table Top Radios Vol. 1 Stein 98

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition) (Rider's 7-1, 7-2, 7-10)

• Literature/Schematics (1)
• chassis sim.61U, Rider's 7-1

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
