Upright Grand 637U Ch= 637
Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
- Country
- Australia
- Manufacturer / Brand
- Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 165297

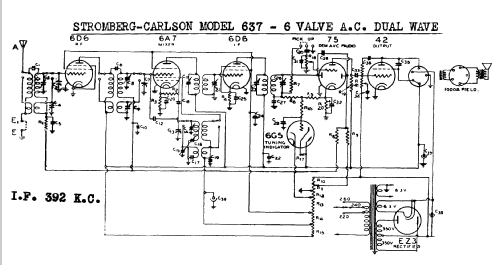

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 392 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 260/240/220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

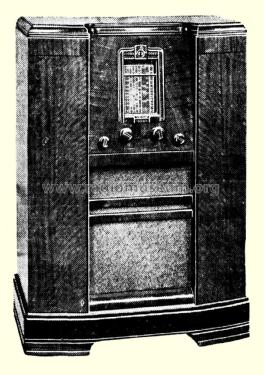

- Model: Upright Grand 637U Ch= 637 - Stromberg-Carlson Australasia
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
See also Concert Grand version.
- Price in first year of sale
- 34.65 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. I
- Literature/Schematics (1)
- - - Manufacturers Literature (Stromberg Carlson Service Bulletin No. 637)
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 1, 1938, Page 239.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
