- Country
- Australia
- Manufacturer / Brand
- Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 165232
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 67 - Stromberg-Carlson Australasia
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 368 x 241 x 191 mm / 14.5 x 9.5 x 7.5 inch
- Notes
-

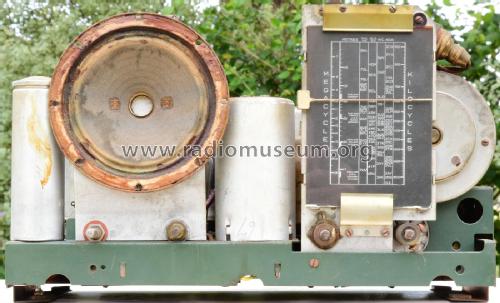

3 piece bakelite cabinet which seems to be the same as Model 57. Also shares many chassis components with model 57.
- Price in first year of sale
- 20.00 Aus£
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. I
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
