- Country
- Australia
- Manufacturer / Brand
- Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 165349

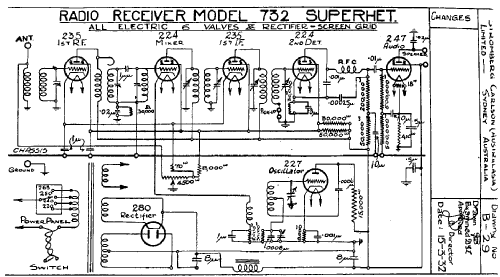

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; 1 AF stage(s); Anode bend detection
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 220; 240; 250; 265 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 732 - Stromberg-Carlson Australasia
- Shape
- Console, Lowboy (legs < 50 %).
- Price in first year of sale
- 49.93 Aus£
- Literature/Schematics (1)
- HRSA Newsletter, Jan 1989 P10.
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
