- Country
- Australia
- Manufacturer / Brand
- Stromberg-Carlson (Australasia) Pty. Ltd. Sydney
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 169981
Aus Stromberg Carlson - Model 736. side
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 392 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 6 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 736 - Stromberg-Carlson Australasia
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 35 x 35 x 14 inch / 889 x 889 x 356 mm
- Notes
-
Covers the broadcast band and short wave band from 5.8mHz to 18.5mHz.
This radio incorporates a Tuning Meter and has a push-pull output stage giving 6 Watts undistorted audio output power.
- Price in first year of sale
- 41.00 Aus£
- Mentioned in
- -- Original prospect or advert (The Australasian Radio World, Aug 1, 1936, Page 21.)
- Literature/Schematics (1)

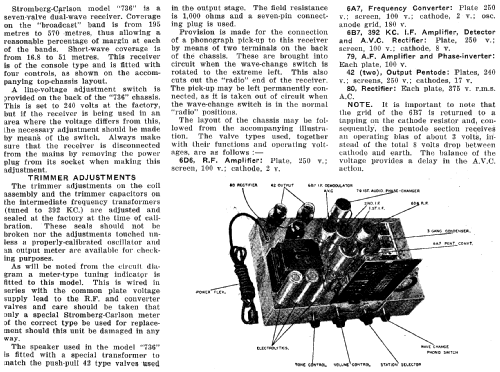

- Radio Trade Annual 1938 P341.
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
