• Country
• Canada

• Manufacturer / Brand
• Stromberg Carlson Telephone Mfg. CO. of Canada Ltd; Toronto

• Year
• 1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 334278

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

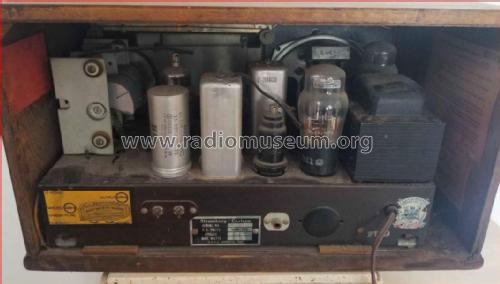

• Valves / Tubes
• 6A8 6K7 6SQ7 6F6G 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

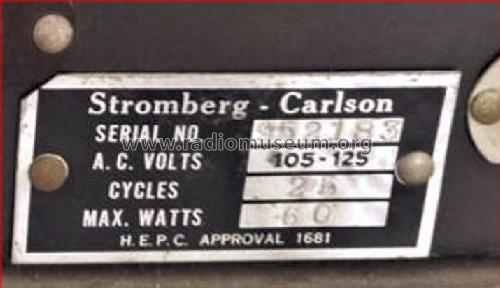

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 952 - Stromberg Carlson Telephone

• Shape
• Tablemodel, with any shape - general.

• Notes

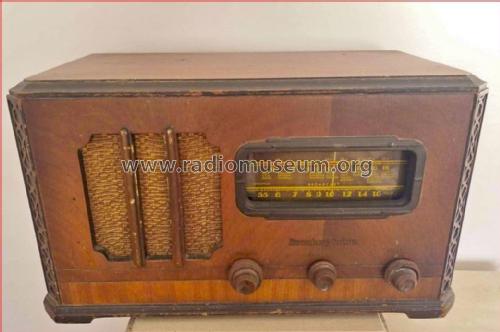

• The Stromberg-Carlson 952 is a 5-tube table radio covering standard broadcast and 6-18 MHz shortwave.

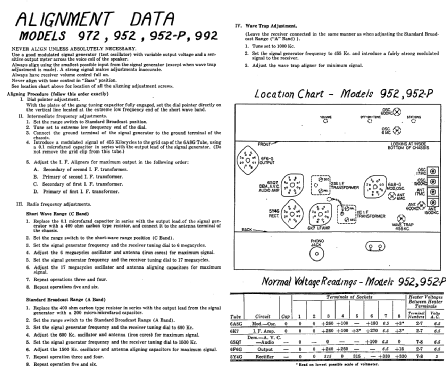

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1939-1940 Sheet 52)

• Author
• Model page created by Terry Maurice. See "Data change" for further contributors.
