• Country
• Canada

• Manufacturer / Brand
• Stromberg Carlson Telephone Mfg. CO. of Canada Ltd; Toronto

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 294857

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6BA6 6BE6 6BA6 6BA6 6AT6 6H6 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 to 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3.5 W (7 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 982 - Stromberg Carlson Telephone

• Shape
• Console with any shape - in general

• Notes

• The Canadian Stromberg-Carlson model 982 is an 8-tube AM/FM radio / phonograph console. Covers standard broadcast and 88-108 MHz FM. For 25 or 60 Hz depending on nameplate rating.

• Literature/Schematics (1)

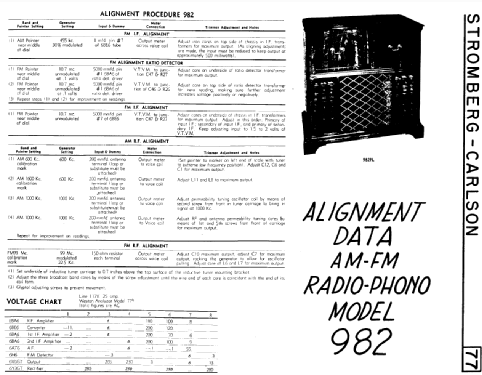

• Radio College of Canada (RCC) (Supplement 20 pages 74 to 77 and 80)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
