- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1958
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 172190
-
- Brand: Te-Lek-Tor-Et

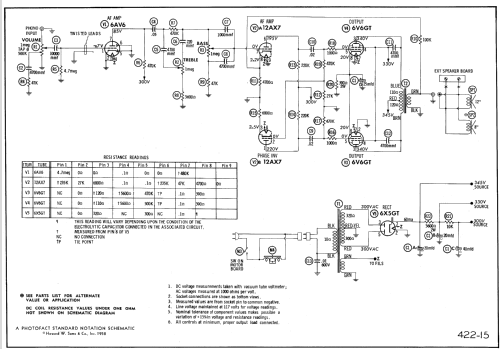

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: AF-631M - Stromberg-Carlson Co. ;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- The Stromberg-Carlson Model AF-631M is an AC operated Phono Amplifier with 4 Speed Automatic Record Player.
Cabinet = Mahogany.
- Literature/Schematics (1)

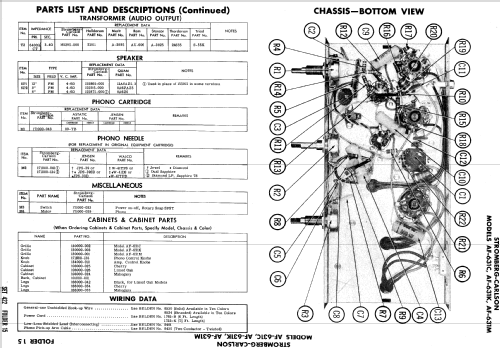

- Photofact Folder, Howard W. SAMS (Date 11-58, Set 422, Folder 15)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
