K-22TB Series K-22
Stromberg-Carlson Co. ; Rochester (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 337514
-
- Brand: Te-Lek-Tor-Et
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6T4 6BQ7A 6AT8 6CB6 6CB6 6CB6 6AN8 12AU7A 6AU6 6T8 12L6GT 6CS6 12AU7A 6C4 6S4 6SN7GTA 6CU6 6AX4GT 1B3GT 5U4GB 21AUP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: K-22TB Series K-22 - Stromberg-Carlson Co. ;
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Stromberg-Carlson model K-22TB is a 21” b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF- UHF tuner 164040 and picture tube 21AUP4A.
- Literature/Schematics (1)

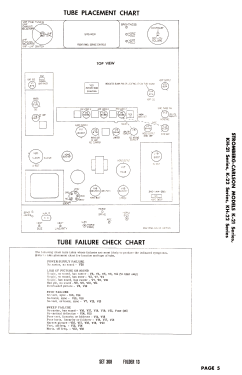

- Photofact Folder, Howard W. SAMS (Set 308 Folder 13 dated 3-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
