• Country
• Australia

• Manufacturer / Brand
• Stromberg-Carlson (Australasia) Pty. Ltd. Sydney

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183766

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EK2G EBF2G 6V6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 458 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200-230; 230-260 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

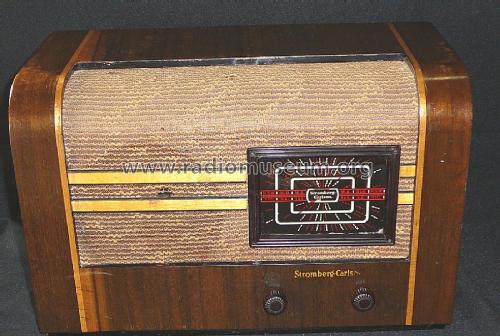

• Model: M31 [Table model] - Stromberg-Carlson Australasia

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Also available as mantle set with the M31 Chassis

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. IV

• Literature/Schematics (1)
• Mingay's Radio Diagram & I.F. Index

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
