Models 24RP (24 Series)
Stromberg-Carlson Co. ; Rochester (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1951 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 348869
-
- Brand: Te-Lek-Tor-Et

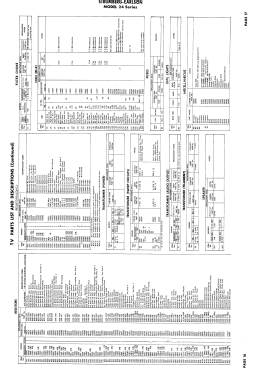

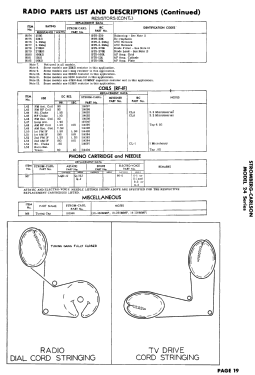

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 38
- Valves / Tubes
- 6BC5 6CB6 6J6 6J6 6BA6 6BA6 6BA6 6CB6 6AL5 6AU6 6AR5 6AU6 6AU6 6AU6 6T8 6AQ5 6CB6 12AU7 6C4 12AU7 or 12BH7 6AL5 6SN7GT 6BG6G 6BG6G 5V4G 1X2 1X2 5U4G 5U4G 6BA6 6BA6 12AT7 6BE6 6BA6 6BA6 6AL5 6C4 24AP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Models 24RP - Stromberg-Carlson Co. ;
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Stromberg-Carlson models 24RP is a 24” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with TV-AM-FM-phono combination receiver, VHF- tuner 164016 and picture tube 24AP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 138, folder 11, dated 7-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
