• Country
• United States of America (USA)

• Manufacturer / Brand
• Stromberg-Carlson Co. ; Rochester (NY)

• Year
• 1951 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 327987

• • Brand: Te-Lek-Tor-Et

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SJ7 6SF5 6N7 6L6G 6L6G 5U4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: PA Amplifier AU-34 - Stromberg-Carlson Co. ;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 13.5 x 7 x 9 inch / 343 x 178 x 229 mm

• Notes

• Stromberg-Carlson model AU-34 is an AC operated audio amlpifier. PA amplifier with 2 inputs: Mic + Phono.

• Net weight (2.2 lb = 1 kg)
• 19.2 lb (19 lb 3.2 oz) / 8.717 kg

• Literature/Schematics (1)

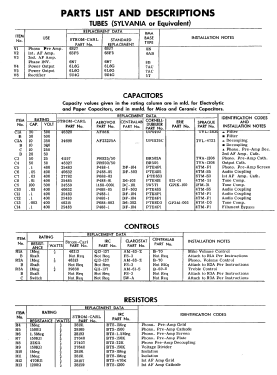

• Photofact Folder, Howard W. SAMS (Set 128 Folder 15 dated 3-51)

• Author
• Model page created by Ernest Allen. See "Data change" for further contributors.
