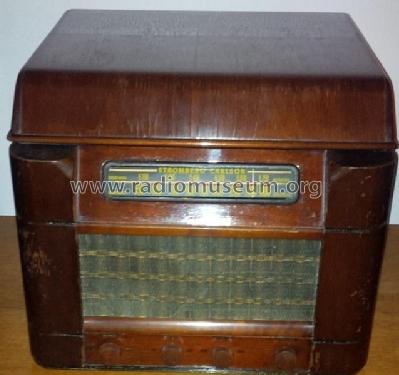

Radio-Phonograph 752APT
Stromberg-Carlson Co. ; Rochester (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 239743
-
- Brand: Te-Lek-Tor-Et
Source: ottawa.kijiji.ca, Ad ID 509152218
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 25 - 60 Hz, 105 - 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radio-Phonograph 752APT - Stromberg-Carlson Co. ;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 17 x 14 x 17 inch / 432 x 356 x 432 mm
- Notes
-
Stromberg Carlson Table Top 2 Band (SW, AM) Tube Radio / Phonograph Model 752APT.
See also model 752 without record player - including schematics.
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
