• Country
• Australia

• Manufacturer / Brand
• Stromberg-Carlson (Australasia) Pty. Ltd. Sydney

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 173089

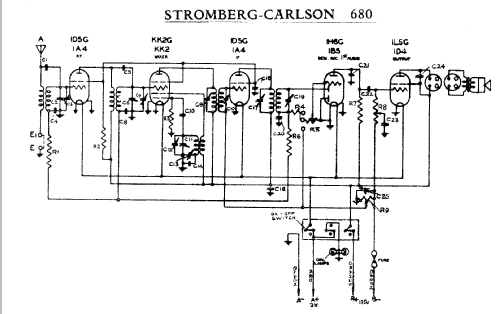

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1D5G KK2G 1D5G 1H6G 1L5G

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 135 & 2 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: T680 Ch= 680 [octal valves.] - Stromberg-Carlson Australasia

• Shape
• Tablemodel, with any shape - general.

• Notes
• The I.F. was changed to 465 kHz after 13/9/38.

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. I I

• Literature/Schematics (1)
• Mingay's Radio Diagram & I.F. Index

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
