- Country
- United States of America (USA)
- Manufacturer / Brand
- Stromberg-Carlson Co. ; Rochester (NY)
- Year
- 1931–1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62012
-
- Brand: Te-Lek-Tor-Et

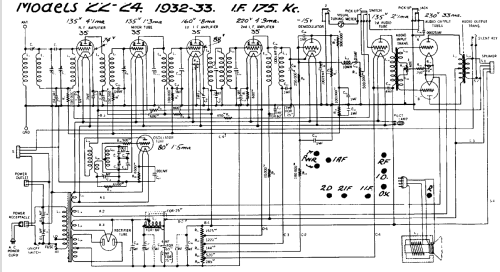

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 175 kHz; 2 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 22 - Stromberg-Carlson Co. ;

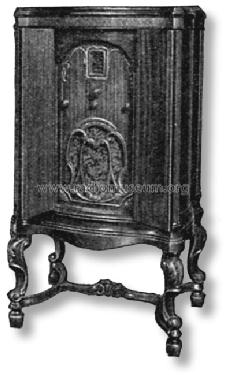

- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- 4 legged lowboy with stretcher base.
Bandfilter input circuits; push-pull audio amplifier.
- Price in first year of sale
- 375.00 $
- External source of data
- Ernst Erb
- Source of data
- Radio Collector`s Guide 1921-1932
- Circuit diagram reference
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Mentioned in
- The Radio Collector's Directory and Price Guide 1921 - 1965 (Rider's 2-4, 2-5, 2-6, 2-7)
- Literature/Schematics (1)
- Pre-War Consoles (Radio College of Canada Stromberg-Carlson 7)
